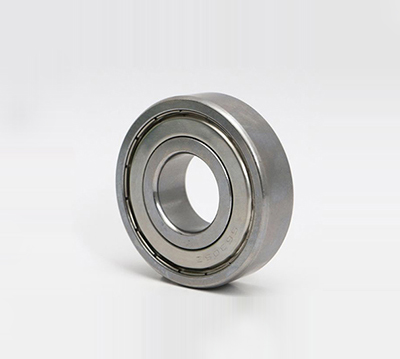

Product name: Stainless steel widening bearing
Hits: 8 Category: Stainless steel widening bearing Product model:
Product details
Stainless steel widening bearing SS 62000,SS 63000,SS W6200,SS W6300 Size
Bearing No. | Overall dimension(mm) | Basic rated load(KN) | Weight (kg) | ||||
d | D | B | rsmin | Dynamic(Cr) | Static(Cor) | ||
SS62000 Size | |||||||
SS62200 | 10 | 30 | 14 | 1 | 5.11 | 2.39 | 0.044 |
SS62201 | 12 | 32 | 14 | 1 | 6.82 | 3.06 | 0.053 |
SS62202 | 15 | 35 | 14 | 1 | 7.64 | 3.72 | 0.065 |
SS62203 | 17 | 40 | 16 | 1 | 9.57 | 4.79 | 0.096 |
SS62204 | 20 | 47 | 18 | 1.5 | 12.84 | 6.65 | 0.145 |
SS62205 | 25 | 52 | 18 | 1.5 | 14.02 | 7.88 | 0.172 |
SS62206 | 30 | 62 | 20 | 1.5 | 19.46 | 11.31 | 0.275 |
SS62207 | 35 | 72 | 23 | 2 | 25.67 | 15.3 | 0.41 |
SS62208 | 40 | 80 | 23 | 2 | 29.52 | 18.14 | 0.616 |
SS62209 | 45 | 85 | 23 | 2 | 31.67 | 20.68 | 0.625 |
SS62210 | 50 | 90 | 23 | 2 | 35.07 | 23.18 | 0.726 |
SS63000 Size | |||||||
SS63000 | 10 | 26 | 12 | 1 | 3.52 | 1.95 | |
SS63001 | 12 | 28 | 12 | 1.1 | 3.93 | 2.23 | |
SS63002 | 15 | 32 | 13 | 1.1 | 4.3 | 2.51 | |
SS63003 | 17 | 35 | 14 | 1.1 | 4.62 | 2.79 | |
SS63004 | 20 | 42 | 16 | 1.5 | 7.22 | 4.46 | |
SSW6200 Size | |||||||
SSW6200 | 10 | 30 | 14.3 | 1 | 935 | 510 | 0.045 |
SSW6201 | 12 | 32 | 15.9 | 1 | 1050 | 595 | 0.055 |
SSW6202 | 15 | 35 | 15.9 | 1 | 1340 | 775 | 0.068 |
SSW6203 | 17 | 40 | 17.5 | 1 | 1660 | 985 | 0.1 |
SSW6204 | 20 | 47 | 20.6 | 1.5 | 2220 | 1410 | 0.15 |
SSW6205 | 25 | 52 | 20.6 | 1.5 | 2430 | 1610 | 0.177 |
SSW6206 | 30 | 62 | 23.8 | 1.5 | 3350 | 2320 | 0.281 |
SSW6207 | 35 | 72 | 27 | 2 | 4450 | 3150 | 0.449 |
SSW6208 | 40 | 80 | 80 | 2 | 5050 | 3650 | 0.627 |
SSW6209 | 45 | 85 | 85 | 2 | 5650 | 4150 | 0.667 |
SSW6210 | 50 | 90 | 90 | 2 | 6050 | 4650 | 0.767 |
SSW6300 Size | |||||||
SSW6302 | 15 | 42 | 19 | 1.5 | 1960 | 1180 | 0.154 |
SSW6303 | 17 | 47 | 22.2 | 1.5 | 2345 | 1430 | 0.191 |
SSW6304 | 20 | 52 | 22.2 | 2 | 2750 | 1715 | 0.209 |
SSW6305 | 25 | 62 | 25.4 | 2 | 3650 | 2370 | 0.35 |
SSW6306 | 30 | 72 | 30.2 | 2.5 | 4600 | 3150 | 0.55 |
SSW6307 | 35 | 80 | 34.9 | 2.5 | 5750 | 4050 | 0.702 |
SSW6308 | 40 | 90 | 36.5 | 2.5 | 7050 | 5050 | 1.001 |
SSW6309 | 45 | 100 | 39.7 | 2.5 | 9150 | 6800 | 1.308 |
SSW6310 | 50 | 110 | 44.4 | 3 | 10700 | 8100 | 1.701 |
